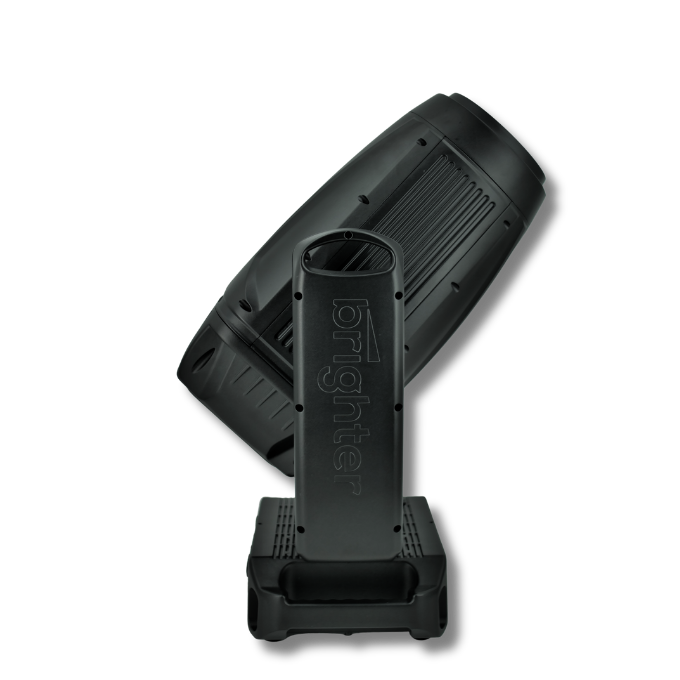

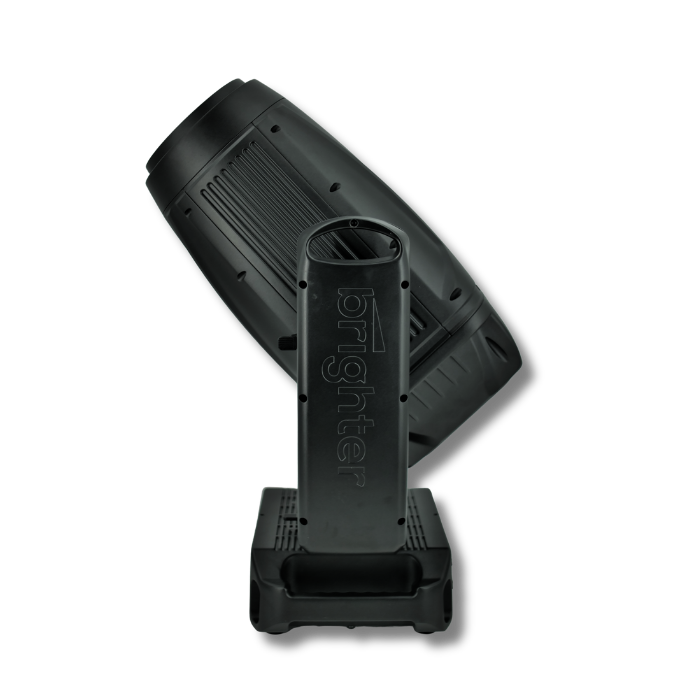

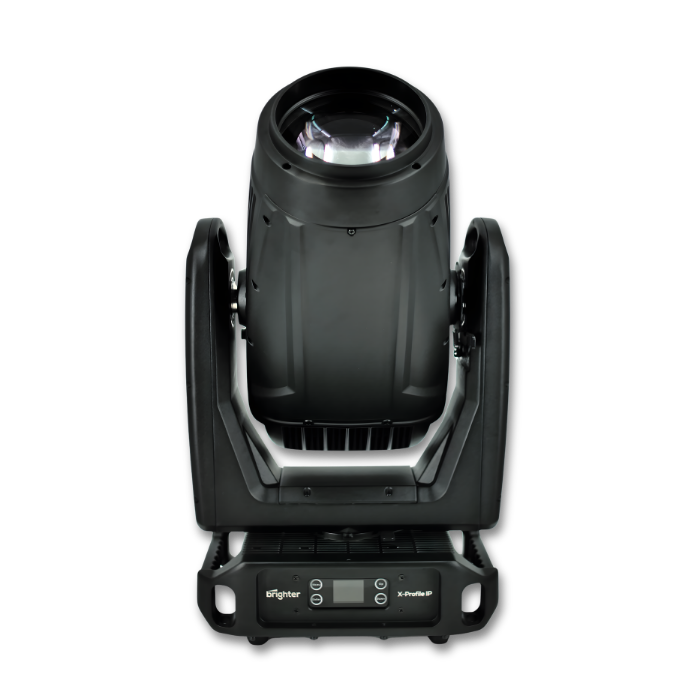

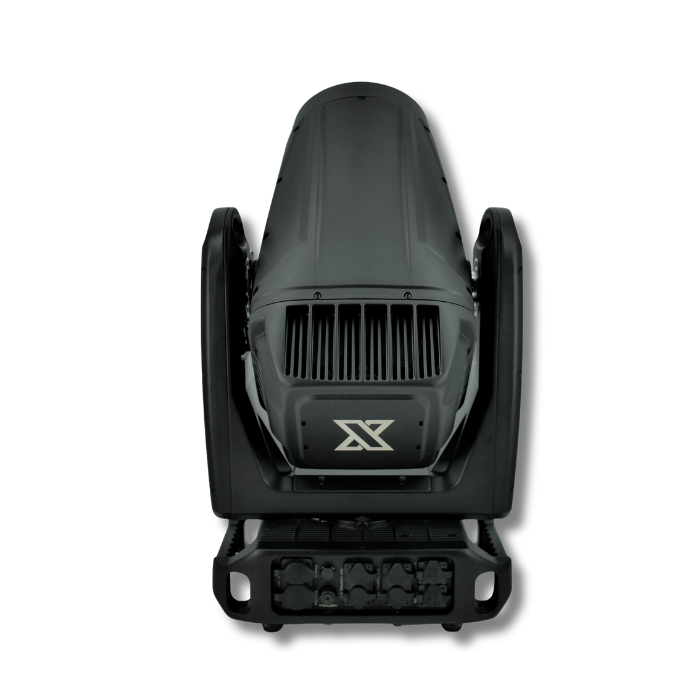

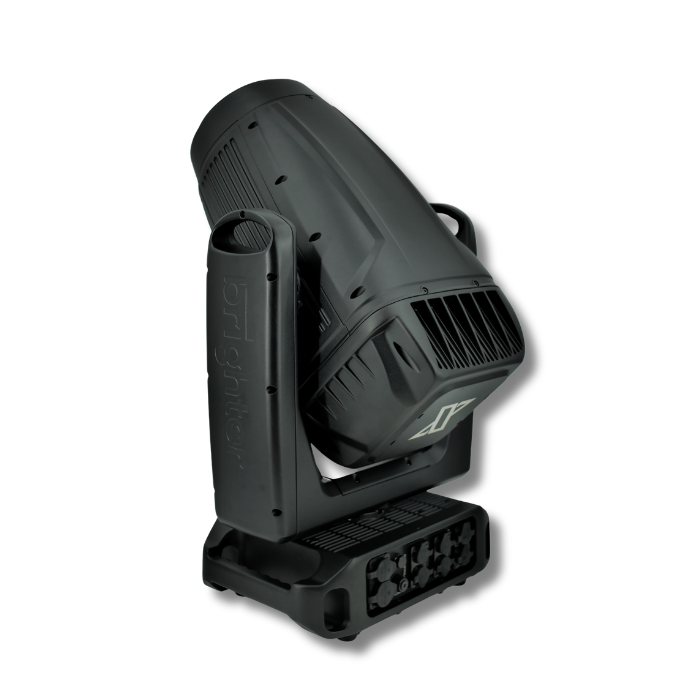

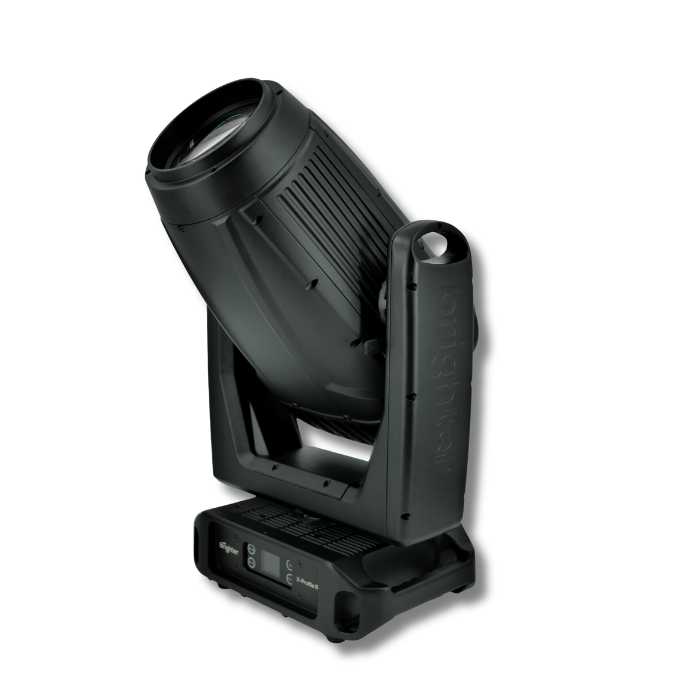

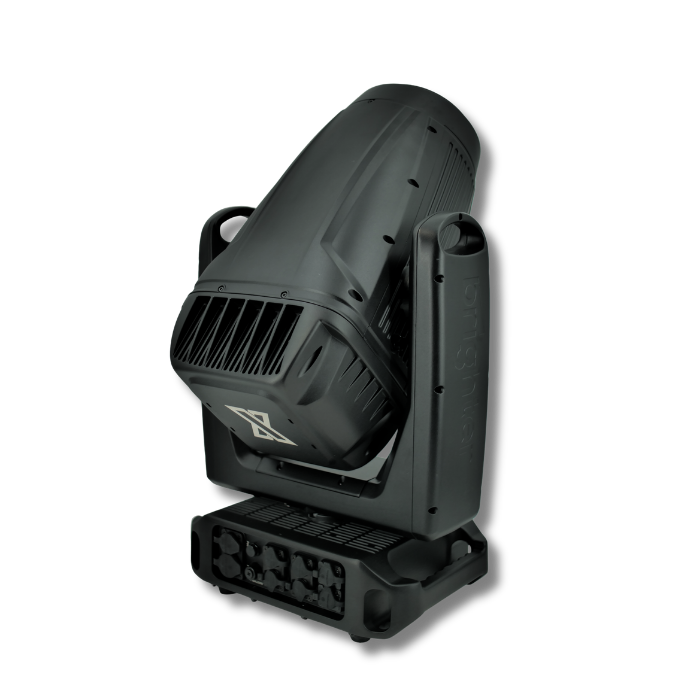

BRIGHTER X-PROFILE IP

Brighter X-Profile IP is an ultra-bright moving head profile fixture designed for demanding professional applications.

Equipped with 800W LED engine, it delivers outstanding performance as a beam, spot, wash, or profile device. With 2 gobo wheels, 2 prisms, animation wheel, linear frost system, linear CTO, high-CRI filter, and four motorized framing blades, it offers unlimited creative possibilities. CMY color mixing and a silent operation mode ensure flawless results in any setting.

All these advanced features are enclosed in a modern, and elegant IP65 housing.

Light source

800W LED
Protection Rating

IP65
Effect

4 framing blades

Electrical Parameters:

  • Maximum Power Consumption: 910W
  • Light Source: 800W, 7000K LED
  • Estimated Light Source Lifespan: 20 000h
  • Power Supply Voltage: 100-240V, 50/60Hz

Features and Functions:

  • Total lumen output: 39 870lm
  • Lux: 121 000@5m (4,5°, White) 2250@5m (50°, White)
  • Colour mixing: CMY
  • Colour wheel: 5 colors + white
  • CRI: >70Ra (>90Ra with HI-CRI filter)
  • CTO: 2700K-7000K
  • Zoom: 4,5° – 50°, 16-bit
  • Focus: 16-bit
  • Dimmer: Electronic 16-bit, 4 curves
  • Movement Range: 540°/260° pan 16-bit/tilt 16-bit
  • Gobo wheels: 7 rotating and 8 static effects
  • Rot gobo size: outer: 20mm, image 12mm
  • Animation disk: Yes
  • Prism: 4-facet circular and 4-facet linear
  • Frost filter: Yes, linear insert
  • Iris: Mechanical, 16-bit
  • 4- blade framing system with +-45° rotation
  • Strobe: 1-25Hz
  • Operating Modes: DMX512, Art-Net, sACN, RDM, Manual
  • HI-CRI filter
  • Possibility to adjust LED frequency from 400Hz to 24kHz
  • Selectable fan operation mode
  • Possibility to control the speed of P/T movement
  • Follow Spot mode

Physical Parameters:

  • Protection Level: IP65
  • Dimensions: 359x240x658 mm
  • Weight: 29kg
  • Power Supply Sockets Standard: PowerCon TRUE1 (IN/OUT)
  • DMX Sockets: 3-pin and 5-pin
  • Art-Net Sockets: RJ45

BOX Content:

  • Power cable PowerCon TRUE1
  • DMX cable
  • Art-Net cable
  • Safety wire
  • Omega brackets
  • User Manual

X-Profile IP in action





KEY FEATURES
High Brightness
Luminous efficacy of 39,000 lm.
High Uniformity Filter
High-quality optics and an advanced color mixing system ensure even brightness distribution across the beam and a uniform color profile.
HI-CRI Filter and Tint Adjustment
Equipped with a HI-CRI filter that boosts the Ra to >90, which is crucial for broadcast and theatrical applications. The fixture delivers flawless skin tone rendering with no color shifts toward green or magenta. In the X-Profile IP, engaging the filter causes virtually no tint shift.
Precise Framing Shutters
The fixture can precisely cut shapes while maintaining sharp focus on both the gobo and the framing. Each blade can fully blackout the beam, allowing for more creative visual effects.
Weight
The lightest fixture in its class given its performance, luminous flux, and IP rating.
PROBLEMS SOLVED
Beam and Color Uniformity:
Thanks to the High-Uniformity filter and an advanced CMY system with 6 dichroic wheels, the fixture produces an exceptionally even spot with consistent colors across the entire beam. This solves major challenges when working in theater and television environments.
High-Quality Gobos:
In many moving heads, inserting a glass gobo causes a noticeable warm tint in the beam. The X-Profile IP uses high-grade glass gobos, eliminating this issue entirely.
Versatile Cooling Modes:
The fixture features 4 fan modes: Full and Auto for outdoor applications where luminous efficacy is the priority, and 2 quiet modes, including Ultra Silent, which reduces noise levels to 37 dBA. This enables seamless operation in noise-sensitive settings like theater stages and TV studios.
IP65 Rating for Theater Applications:
Compared to standard indoor moving profiles, the IP65 rating keeps dust and dirt out of the housing. As a result, the fixture does not require frequent removal from the batten or pipe for internal cleaning.
Followspot Functionality:
Featuring a dedicated followspot mode, it serves as a lighter, more compact, and far more versatile alternative to traditional followspots. During operation, the lighting operator retains full control over intensity and beam angle directly from the console.
