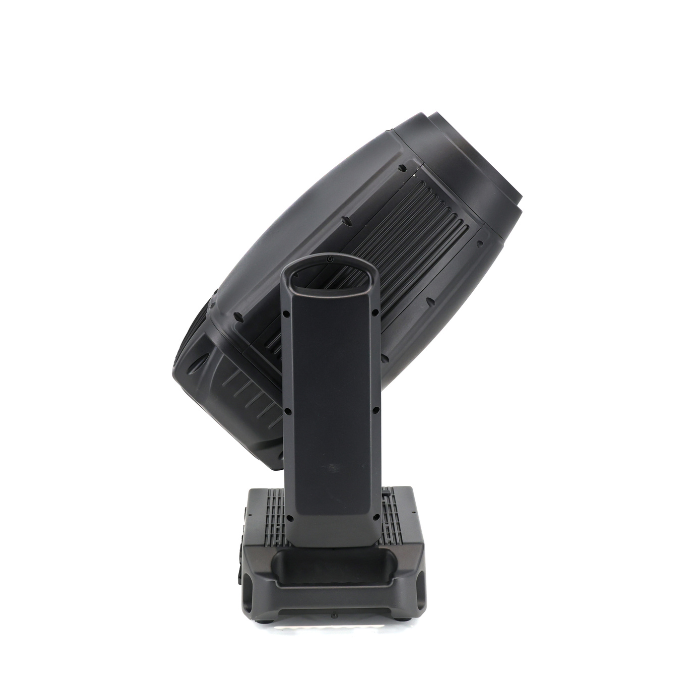

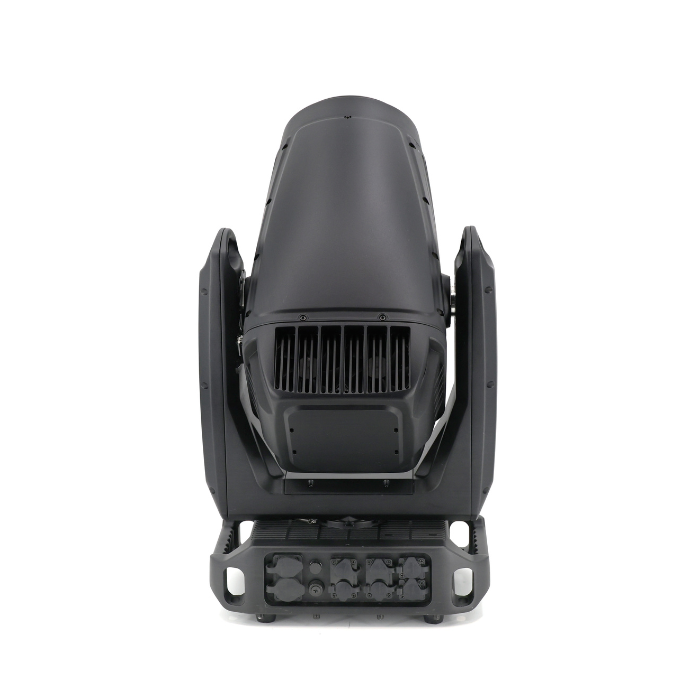

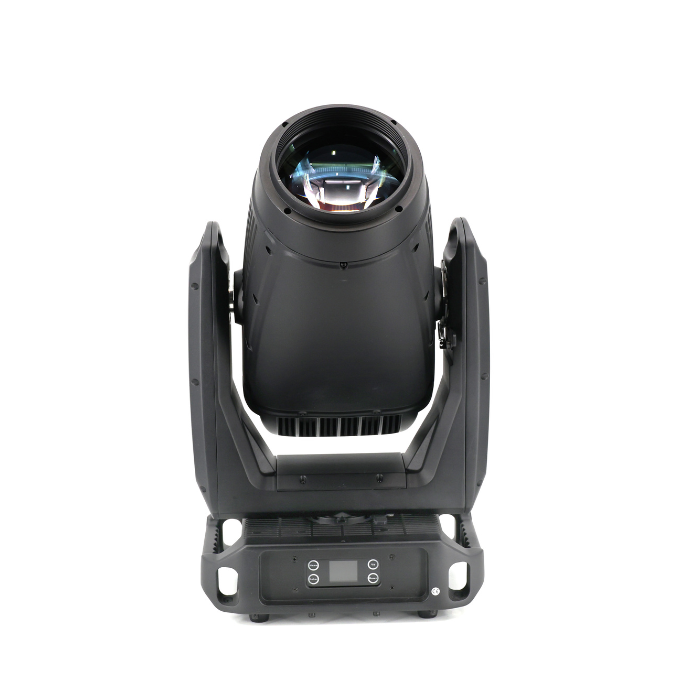

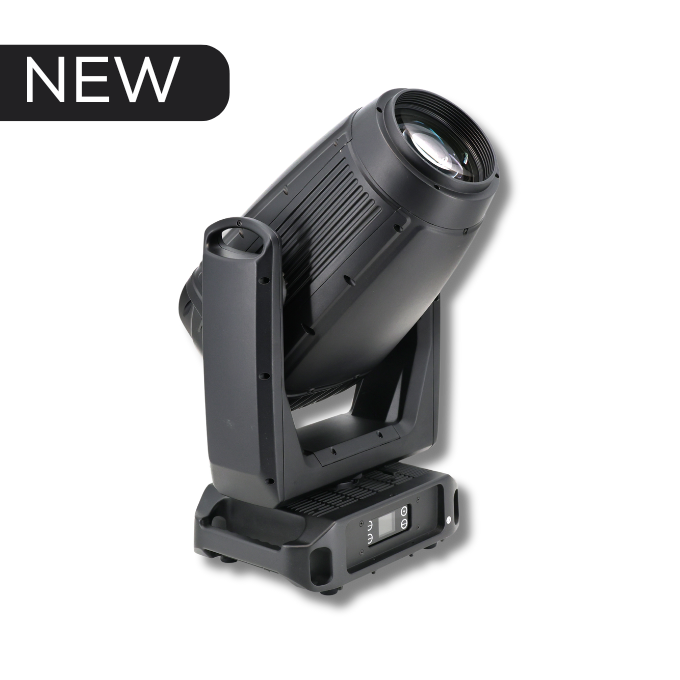

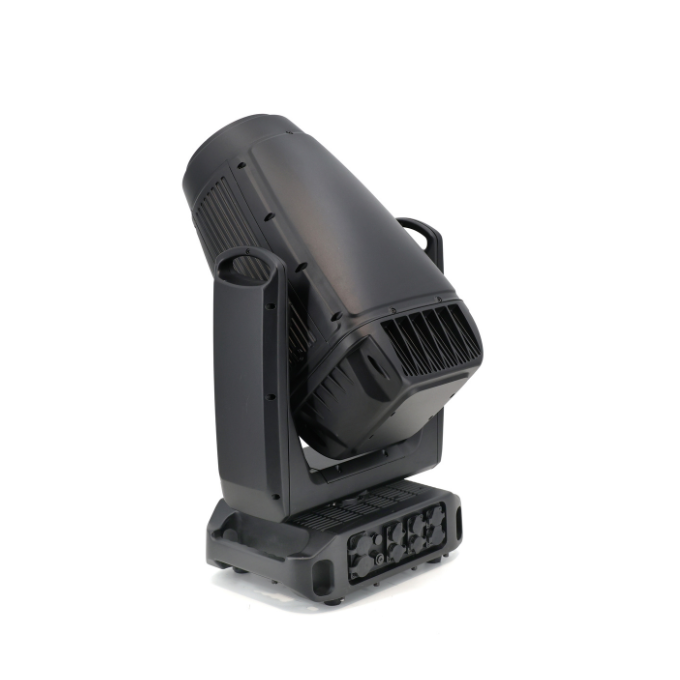

BRIGHTER X-PROFILE IP

Brighter X-Profile IP is an ultra-bright moving head profile fixture designed for demanding professional applications.

Equipped with 800W LED engine, it delivers outstanding performance as a beam, spot, wash, or profile device. With 2 gobo wheels, 2 prisms, animation wheel, linear frost system, linear CTO, high-CRI filter, and four motorized framing blades, it offers unlimited creative possibilities. CMY color mixing and a silent operation mode ensure flawless results in any setting.

All these advanced features are enclosed in a modern, and elegant IP65 housing.

Light source

800W LED
Protection Rating

IP65
Effect

4 framing blades

Electrical Parameters:

  • Maximum Power Consumption: 910W
  • Light Source: 800W LED
  • Estimated Light Source Lifespan: 20 000h
  • Power Supply Voltage: 100-240V, 50/60Hz

Features and Functions:

  • Total lumen output: 39 870lm
  • Lux: 121 000@5m (4,5°, White) 2250@5m (50°, White)
  • Colour mixing: CMY
  • Colour wheel: 5 colors + white
  • CRI: >70Ra (>90Ra with HI-CRI filter)
  • CTO: 2700K-7000K
  • Zoom: 4,5° – 50°, 16-bit
  • Focus: 16-bit
  • Dimmer: Electronic 16-bit, 4 curves
  • Movement Range: 540°/260° pan 16-bit/tilt 16-bit
  • Gobo wheels: 7 rotating and 8 static effects
  • Animation disk: Yes
  • Prism: 4-facet circular and 4-facet linear
  • Frost filter: Yes, linear insert
  • Iris: Mechanical, 16-bit
  • 4- blade framing system with +-45° rotation
  • Strobe: 1-25Hz
  • Operating Modes: DMX512, Art-Net, sACN, RDM, Manual
  • HI-CRI filter
  • Possibility to adjust LED frequency from 400Hz to 24kHz
  • Selectable fan operation mode
  • Possibility to control the speed of P/T movement

Physical Parameters:

  • Protection Level: IP65
  • Dimensions: 359x240x658 mm
  • Weight: 29kg
  • Power Supply Sockets Standard: PowerCon TRUE1 (IN/OUT)
  • DMX Sockets: 3-pin and 5-pin
  • Art-Net Sockets: RJ45

BOX Content:

  • Power cable PowerCon TRUE1
  • DMX cable
  • Art-Net cable
  • Safety wire
  • Omega brackets
  • User Manual
Datasheets
product info128 KBDownload
User manual
USER MANUAL1 MBDownload
Personalities
Personalities Chamsys11 KBDownload
Personalities MA25 MBDownload
Personalties Avolites1 MBDownload
Personalities GDTF/MA35 MBDownload
Personalities Wysiwyg234 KBDownload
Photometrics, certificates and tests
Photometrics169 KBDownload
Declaration of Conformity214 KBDownload
Noise measurements202 KBDownload
Firmware
Firmware 1.050 MBDownload
